Pellet print heads

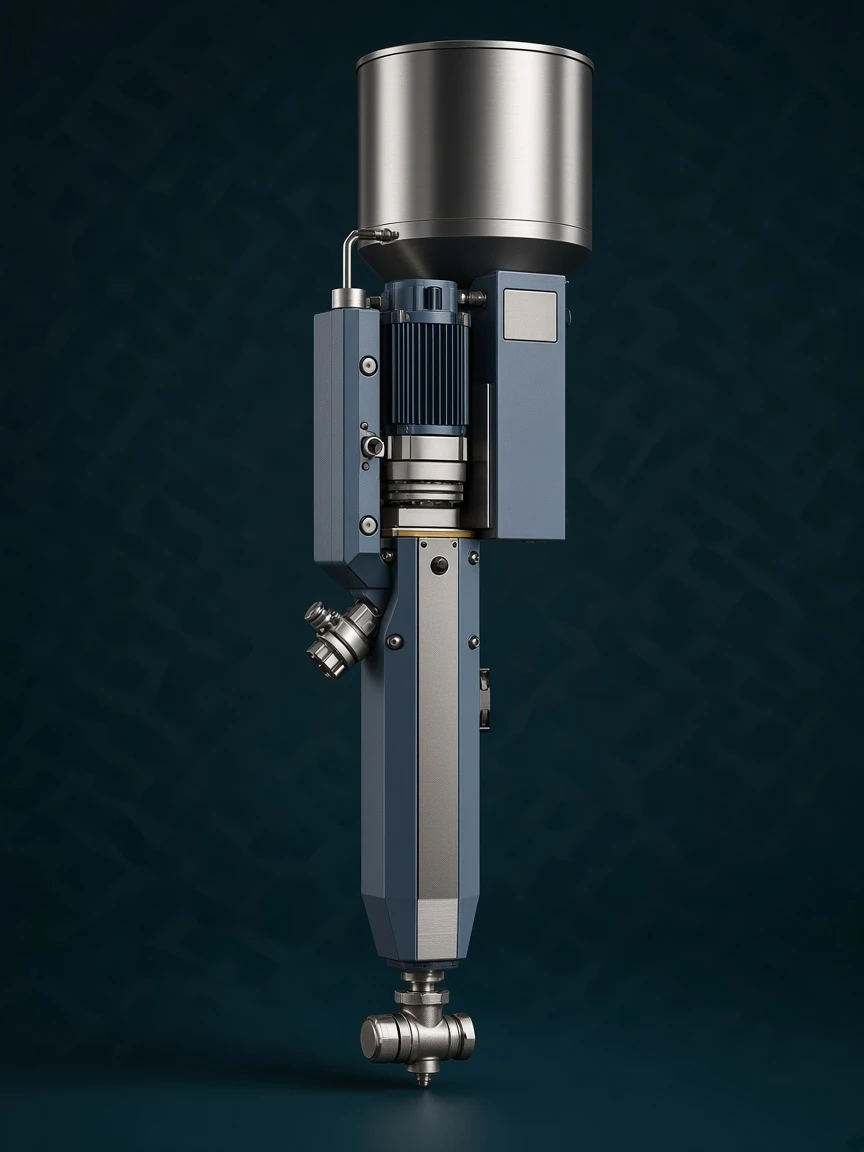

P45 / P55 Pellet Extruder
Large pellet extruders for maximum deposition rate on C40-class gantry systems.
Technical specifications
| Parameter | P45 | P55 |
|---|---|---|
| Servo motor | 7.5 kW | 11 kW |
| Heating zones | 5 | 5 |
| Max extrusion | ≤ 50 kg/h | ≤ 50 kg/h |
| Nozzle diameter | Ø4 – 30 mm | Ø4 – 35 mm |
| Hopper capacity | 2.5 kg | 2.5 kg |
| Print head weight | 135 kg | 135 kg |
| Dimensions (L×W×H mm) | 310 × 410 × 1750 | 310 × 410 × 2150 |
